Ritchie Stock Cube 320g

Description

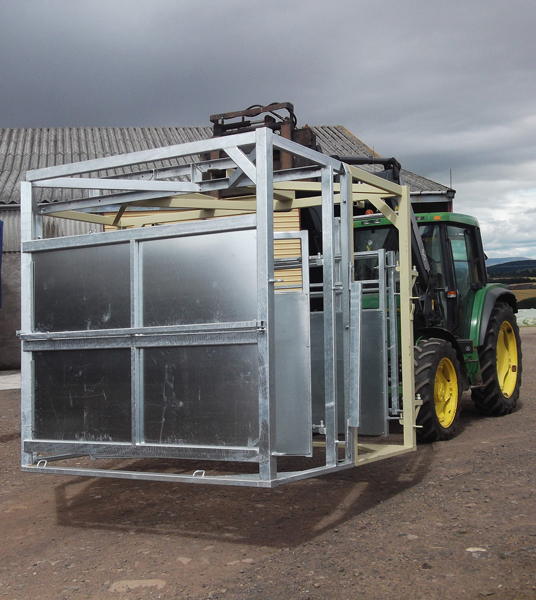

Benefits Portable or fixed applications Easily handled by forklift or pallet tines on front loader Easy to set-up and use Can transport up to 20 x2.5 m (8′) cattle hurdles including pins Unique ‘creeper’ gate eliminates corner trap when operating the main sweep gate Easy access to and from the holding area Operator is behind the cattle and sweep gate whilst in operation Proven successful with horned cattle Features All hot dipped galvanised finish All sheet metal is ‘safe edged’ Self locking ratchet style catch with spring loaded slip bolts on sweep gate ‘Creeper’ gate eliminates corner traps for stock ‘Bolt down’ positions for fixed installations Large sized fork lift pokets are incorporated. 150×100 mm No. 320G Specifications: Transport footprint 3350×2450 mm, Working footprint 3350×5500 mm, Height of curved section 1620 mm, Height of hurdles off ground 1620 mm, Width of exit raceway 760 mm, Internal headroom 2080 mm.
