Luda Farm Cam Security System

Description

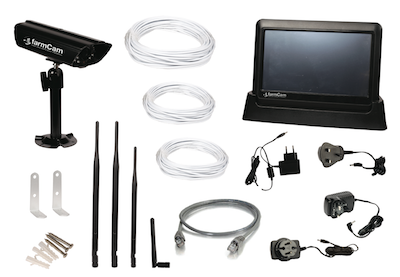

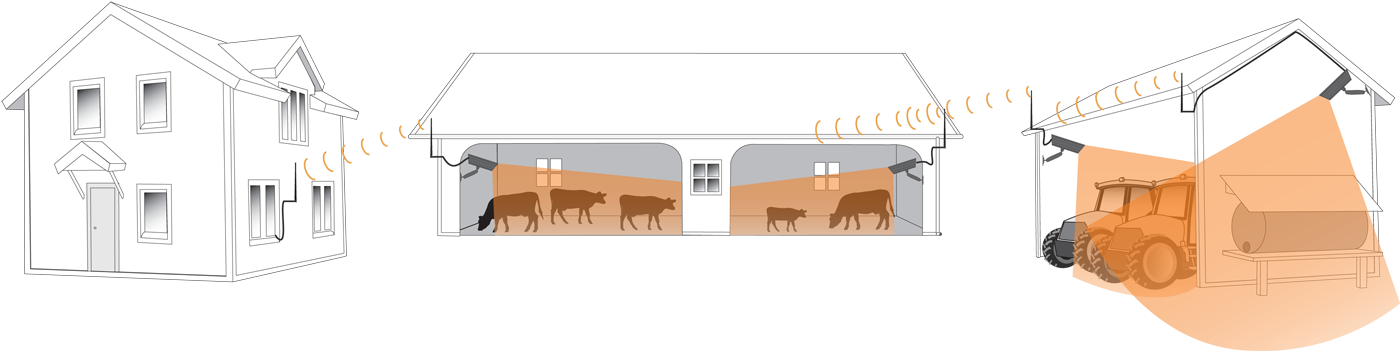

The camera monitors your cattle, the signal is transmitted through the cable to the antenna on the outside of the building. The signal is sent from camera to home/office via the outdoor antennas. The monitor receives the signal from the barn and the picture is displayed on the screen. By connecting the monitor to your broadband router you can see your farm wherever you go, through a tablet or smartphone connected to the internet Optimal signal quality is obtained when there are no obstacles whatsoever between the antennas. Keep this in mind when planning your installation. It is important that both outdoor antennas are placed on the outside of the buildings to reduce the number of obstacles. Free line of sight: Decide where you intend to place the outdoor antennas. Make sure that there are as few obstacles (trees, bushes, buildings) as possible in the line between the outdoor antennas. Antenna cable length: Three antenna cables are included in the farmCam box: A 16m cable for the camera, a 9m cable with 90° connection for the monitor and one extra 9m cable. The extra 9m cable can be used with either the camera and the monitor. If you would like to use it, screw the two cables toghether. If you intend to extend the cable to the monitor you will need to use the large antenna instead of the the medium one. (See Chapter 9, Installing the outdoor antennas.) Camera Placement: Avoid placing the camera behind glass or windows as the glass will reflect the night vision IR light and cause a blurred picture. If you are planning to use the motion detection function, avoid pointing the camera at bushes, flags or other objects that might move in the wind and cause unwanted recordings.
